Column:Work lights

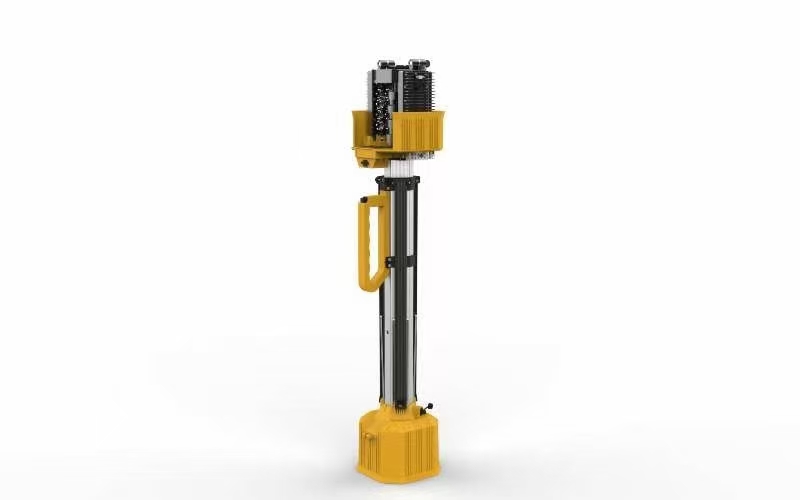

Rated voltage:DC22.2V Battery rated capacity:5×5Ah Protection level:IP66 Explosion-proof signs:Exeb ib mb IICT5 GB Rated power:180W Service Life:100000h Maximum initial illumination at 10m:600Lx Form of lighting:Spotlight + Floodlight Warning light color:Red/Blue Battery service life:Cycle>500 Charging time:<5h Weight:13±1Kg
■ Product Introduction: Applicable for night inspection lighting of public security mobile checkpoints, patrol vehicles, and emergency response vehicles; emergency and fire frontline rescue and lighting at accident and disaster scenes; lighting at traffic accident investigation and rescue sites and expressway checkpoint settings; large-scale mobile lighting for rescue and emergency repair in industries such as petroleum, chemical, railway, and power grid, as well as construction sites in explosion-proof areas. ■ Environmental Conditions for Use: Ambient temperature: -20℃ to +40℃ Relative humidity: ≤95% RH (at an ambient temperature of 25℃). ■ Performance Characteristics: Structural Features: 1. The luminaire adopts an intrinsically safe, rubber-sealed, and increased safety compound explosion-proof structure design, which can be safely used in flammable and explosive gas environments in Zone 1 and Zone 2. The overall protection level reaches IP66 and can be used outdoors in harsh environments such as rain and snow for long periods; 2. The lamp head assembly uses high-efficiency LED light sources, which are energy-saving and environmentally friendly, with high illumination brightness and a long service life; the maximum illumination power is 180W, which can meet the large-scale illumination needs of various construction sites; 3. Adopting a three-lamp head design, the irradiation direction and angle can be adjusted horizontally and vertically to achieve 360° annular illumination in three directions and unilateral illumination. The height of the lamp head can be adjusted through a five-section telescopic pole, with the maximum lifting height reaching 4m, which can meet the lighting needs of different places; 4. The luminaire is equipped with a large-capacity high-energy lithium battery pack with a low self-discharge rate. When fully charged, it can meet the lighting time requirements of 6 hours of strong light, 9 hours of working light, and 12 hours of weak light. The luminaire is internally equipped with overcharge, overdischarge, and short-circuit protection functions, which are safe and reliable; 5. Both the front and sides of the luminaire are equipped with separately operable high-brightness red and blue warning lights, with a visible distance of more than 1km, reminding pedestrians and vehicles to avoid for the safety of the operation site and personnel; 6. The luminaire is equipped with triangular support legs, which can significantly improve the stability of the luminaire. The operation is simple and convenient, suitable for task scenarios that require frequent transfers; 7. Dual control: The operation panel of the luminaire can achieve three-level dimming, activation of warning lights, and five-grid segmented battery level viewing; by downloading the luminaire control APP and connecting via Bluetooth, the luminaire and warning lights can be turned on, stepless dimming, battery level display, and charging status viewing can be achieved. The control distance is more than 30m, effectively enhancing the applicability of the luminaire in different occasions; 8. Small in size and light in weight, it can be carried in various ways such as handheld and backpack.
